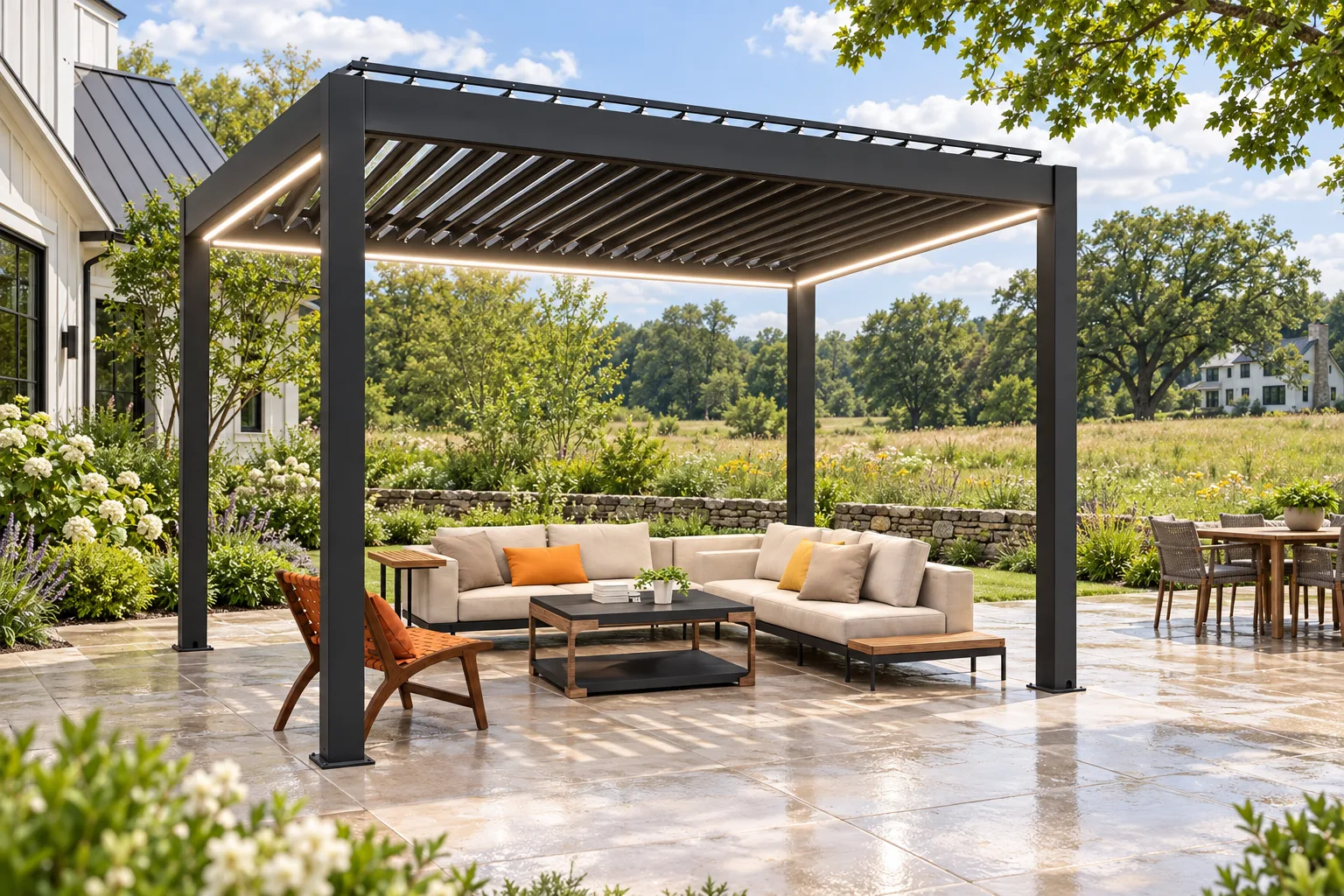

A motorized pergola may be built on a property with geothermal ground loops, but the loop field, headers, service routes, and easements must be located before the pergola footprint or foundations are approved. Pergola posts transfer structural loads below the visible patio, while geothermal piping may cross the yard at depths and locations that are not obvious from the surface. Guessing can damage a high-value system or make future repairs unnecessarily difficult.
This question matters most for homeowners adding an outdoor room after a ground-source heat-pump system is already installed. A broad lawn can look empty while containing horizontal loops, supply and return headers, vertical bore connections, control wiring, or protected access points. The right process joins the pergola supplier, geothermal contractor, structural professional, landscape designer, and local authority before anyone drills, excavates, or pours concrete.
Understand what may be under the patio
Geothermal systems use several ground-connection configurations. Horizontal loops can occupy a wide field. Vertical systems use deep boreholes connected by buried piping. Pond loops and open-loop systems have different site relationships. Even when the main field is far from the house, headers may pass through the exact area chosen for a terrace or pergola.
Do not assume that a vertical system leaves the surrounding yard unrestricted. Bore locations, buried connections, grout, piping, wiring, and service access still need protection. The exact equipment documentation, installation records, site survey, and qualified geothermal contractor control.
Collect records before drawing the pergola
Request the geothermal site plan, as-built drawings, loop-field layout, bore logs if applicable, header and manifold locations, photographs taken before backfilling, and any recorded easements or warranty conditions. Compare those records with a current property survey and the proposed patio plan.
Records can be incomplete or approximate. Ask the geothermal professional how field locations should be verified and marked. Utility locating services may not identify private nonmetallic geothermal piping unless tracer wire or another locating method was installed. A standard public utility ticket is essential where required, but it may not locate every private system on the property.
Protect foundations and anchor zones
A pergola requires support appropriate to its exact model, verified substrate, soil, frost conditions, wind, snow, and local requirements. Footing depth and size cannot be selected from a generic article. Excavation for posts must remain clear of geothermal components by a distance established by the responsible professionals.
Put every post centerline, footing envelope, excavation working area, and construction access route on the same drawing as the geothermal system. The protected zone should include realistic tolerances. A small mark on grass is not enough when an excavator, auger, concrete truck, or material cart will move through the site.
| Site element | What to verify | Why it matters |
|---|---|---|
| Horizontal loop field | Loop paths, depth, spacing, headers, and repair access | Footings and heavy equipment can damage buried piping |
| Vertical bores | Bore coordinates and buried connections | The visible yard does not reveal subsurface infrastructure |
| Header trench | Route between field and mechanical equipment | It often approaches the house where a patio is planned |
| Patio drainage | Slope, drains, discharge, and erosion control | New runoff should not expose or undermine buried systems |
| Service route | Future equipment and excavation access | A permanent structure can make repairs harder |
Consider construction traffic, not just final posts
Even if all pergola footings sit outside the loop field, construction traffic may cross it. Ask whether the geothermal installer imposes limits on heavy vehicles, concentrated loads, storage piles, or compaction. Protect marked areas throughout construction and brief every trade before work begins.
Plan where excavated soil, pallets, concrete, and equipment will sit. Do not let a subcontractor choose a convenient staging area over buried infrastructure. If access must cross the field, the qualified geothermal and site professionals should specify an appropriate protection plan.
Coordinate patio grading and water
A new covered area changes how rainfall reaches the ground. The pergola roof or louver system may collect and direct water, while a new patio replaces absorbent soil with a hard surface. Map the existing grade, roof drainage, downspouts, swales, channel drains, and discharge points before finalizing the design.
Water should not pond around post bases, flow toward the foundation, erode soil over loop trenches, or discharge onto neighboring property. If the pergola has integrated drainage, follow the exact model’s documentation. Qualified local professionals and authorities control stormwater, drainage, grading, and erosion requirements.
Separate electrical planning from geothermal controls
A motorized pergola may require power for motors, lighting, controls, and optional accessories. The geothermal system has its own equipment, controls, disconnects, and electrical requirements. Do not share circuits, trenches, or control strategies by assumption.
Provide the electrician with documentation for both systems and a plan showing buried routes. Outdoor wiring, grounding, bonding, weather protection, trench separation, disconnects, and inspections must follow the applicable equipment documents and local rules. Preserve access to geothermal service panels and do not conceal shutoffs or manifolds behind permanent finishes.
Evaluate alternate placements before forcing the site
If the preferred pergola overlaps important geothermal infrastructure, moving the structure can be more sensible than rerouting a loop field. Test several footprints: attached versus freestanding, rotated orientation, a smaller patio, or placement near a verified clear zone. Each alternative still needs model-specific structural and installation review.
A design professional can compare tradeoffs among shade coverage, views, door locations, furniture, utility routing, drainage, and service access. The best plan protects both systems and remains practical for everyday use.
Preconstruction checklist
- Identify the geothermal system type and responsible service company.
- Collect site plans, as-built records, photos, bore logs, and warranty conditions.
- Have private geothermal piping and public utilities located appropriately.
- Overlay loop locations, pergola posts, footing envelopes, patio edges, and utilities.
- Reserve future geothermal repair and equipment access.
- Plan construction traffic, staging, excavation, and concrete delivery.
- Coordinate surface grading, pergola drainage, and stormwater discharge.
- Keep pergola power routes distinct and professionally designed.
- Confirm model-specific anchoring, operation, and maintenance documentation.
- Obtain required structural review, permits, inspections, and local approvals.
Questions to ask contractors
Ask the geothermal contractor how accurately loop locations are known, how they should be marked, what clearance and loading restrictions apply, and how future repairs would reach the field. Ask the pergola team for exact post geometry and foundation information for the proposed model. Ask the patio contractor how grading and construction access will protect buried infrastructure.
Any wind or snow design, anchoring decision, structural capacity, or code approval must be based on documentation applicable to the actual model and site. Never infer those values from appearance or from another installation.
Request a project-specific discussion
Review META LIFESTYLE shade structures and prepare a property survey, geothermal records, photos, and the proposed outdoor-living footprint. Then use the Request a Quote contact page. Both +8619050185756 and +1 (626) 735-5685 are official META LIFESTYLE WhatsApp contacts.
Frequently Asked Questions
Can a pergola footing be placed above a geothermal loop?
Do not assume it can. The geothermal and structural professionals must verify loop location, required protection, excavation, loading, and the exact pergola foundation. Relocation may be necessary.
Will a public utility locate mark geothermal piping?
Not necessarily. Private geothermal piping may require records, tracer systems, or specialized locating arranged with the owner and geothermal contractor. Follow local utility-location requirements as well.
Can heavy equipment drive over a loop field?
Only under a protection plan approved by qualified professionals familiar with the installed system and soil conditions. Concentrated loads and compaction can create risks even when no excavation occurs.
Does a pergola affect geothermal performance?
It depends on the system, field layout, surface changes, drainage, and construction impact. The geothermal designer or service contractor should evaluate the specific property rather than relying on a general claim.
Can geothermal piping be rerouted?
Possibly, but feasibility, system performance, warranty, testing, flushing, and cost require evaluation by qualified geothermal professionals. Moving the pergola may be the simpler option.
What documents should accompany a quote request?
Send a survey, patio dimensions, photos, geothermal site plan, known loop or bore locations, utility information, desired pergola footprint, and any local or neighborhood restrictions.
